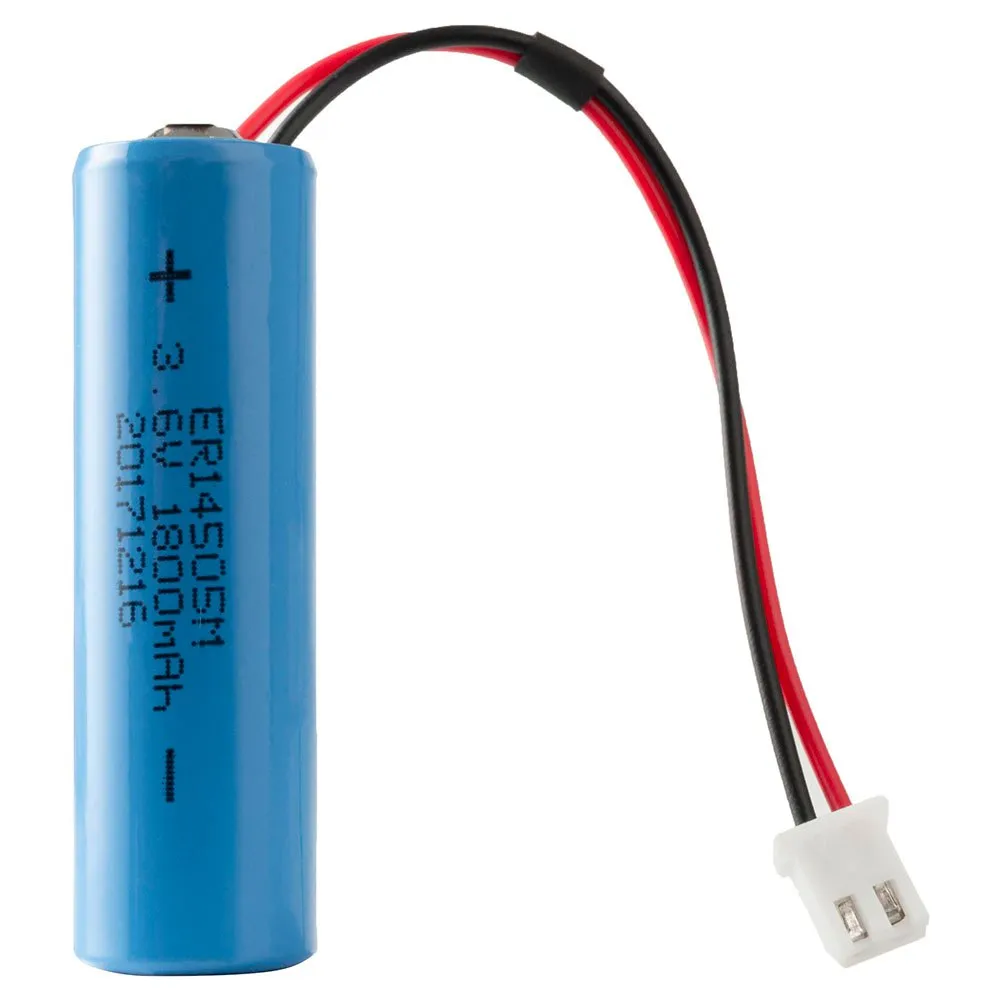

Battery For Blue Connect

Thionyl chloride lithium battery. Compatible with Blue Connect (white) and Blue Connect Plus (blue) models. The battery has to be replaced approximately every two years under normal conditions of use.

Features:

– Lithium thionyl chloride battery
– Specific to the ´´Blue Connect´´ product
– High power density
– Resistant in humid environments
– Excellent reliability and rated capacity
– Useful life for two seasons (if the pool has been in hibernation) and guarantee of 1 year
– Easy battery change and use of tools
– Electric material: PVC

Process for changing the battery:
– ´´Parameters´´ – ´´Blue Connect´´, press ´´Battery change´´
– Remove the analyser from the water, remove the rubber ring and the cover and place Blue Connect in the storage plug
– Remove it and start the procedure in a dry and clean place
– Remove the adhesive tape and unscrew the upper part of the device This is a left/hand thread Unscrew in clockwise direction Remove the seal and throw it away
– Disconnect the white connector by pulling the red and black wire. The battery is on the other end of the cable. Press the plastic rod to release the battery and pull it out of the cable.
– Place the new battery in the bottom of the cavity until it is blocked. Then connect the connector.
– Place the new gasket supplied with the battery into the thread at the top of the unit. Close the top. This is a left-hand thread. Turn it counter clockwise.
– Stick the new adhesive supplied with the battery and then reinstall the ring. Then, replace the usage cover and reintroduce Blue Connect into the water.

Specifications:

– Dimensions: 13 x 1.5 x 1.5 cm
