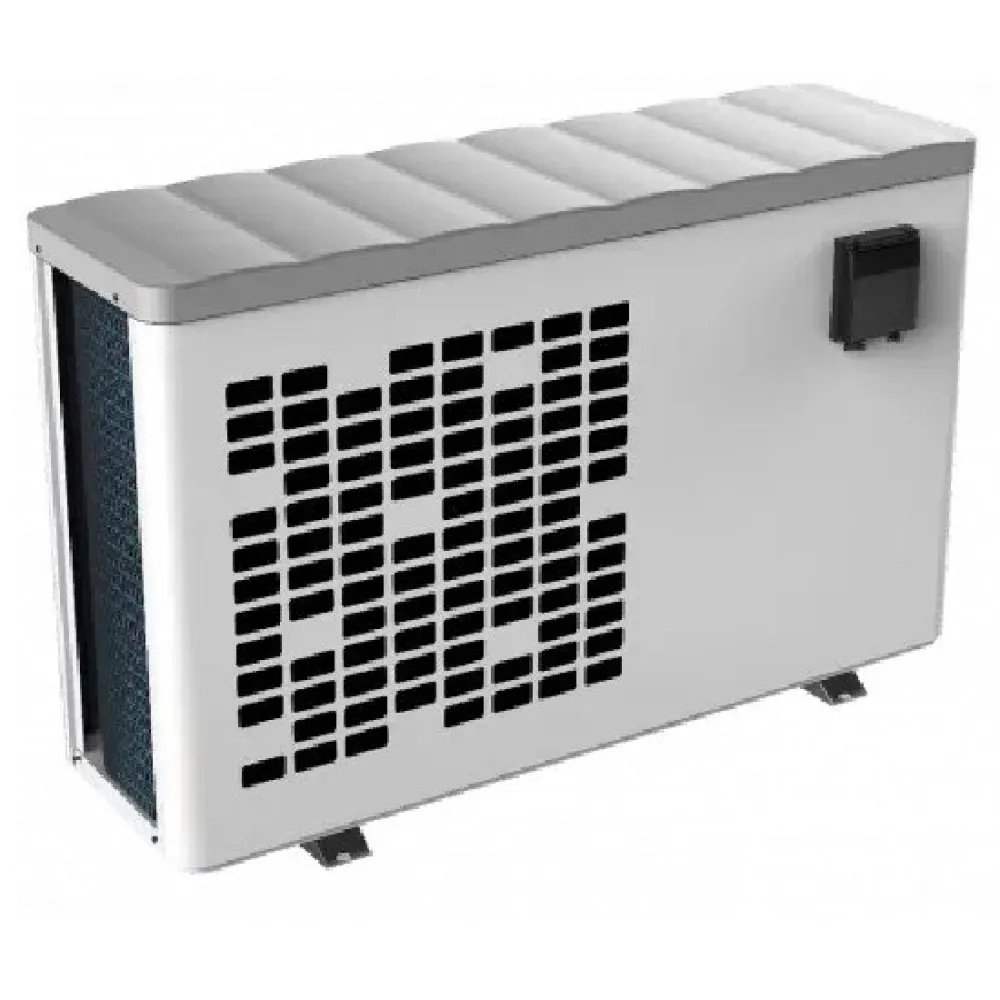

FSN-11 11kW Heat Pump

Features:

– -5°C minimum air operating temperature with cooling function
– Quick water connections
– Galvanized steel body
– Galvanized steel body with ABS top
– Laser cut fan outlet
– LCD (LED) display
– Heating function ensured outside of filtration hours
– Automatic defrosting
– Titanium water exchanger, compatible with salt water treatment
– On-off compressor, Rotary vane
– Included 3.5m power cable (without plug) except FSN-17

Accessories Included In The Pack:
– Winter cover
– Quick water connections, compression, Ø 50
– Remote control kit
– Condensate drain kit
– U-shape anti-vibration feet

Specifications:

– Dimensions (mm): 978*396*566
– Weight (kg): 65

Performance: Air 28°c / Water 28°c / Humid. 80%:
– Operating power (kW): 11
– Consumed power (kW): 2,2
– COP: 5

Performance: Air 15°c / Water 26°c / Humid. 70%
– Operating power (kW): 7,5
– Consumed power (kW): 1,8
– COP: 4,3

Technical Specifications:

– Recommended water flow (m3 /h): 5
– Hydraulic connection: Quick water connections, compression, Ø 50
– Electric power supply: 220-240V / 1 N~ / 50Hz
– Nominal operating power (A): 9,8
– Recommended cable power section (mm²): 3 x 2.5
– Refrigerant fluid: R32
– Refrigerant fluid quantity (kg): 0,9
– Acoustic Power (dB(A)): 66
– Acoustic pressure at 10m (dB(A)): 35
– Recommended section for a maximum length of 20 meters.
– According to EN60704-1:2010+A11:2012 standard
