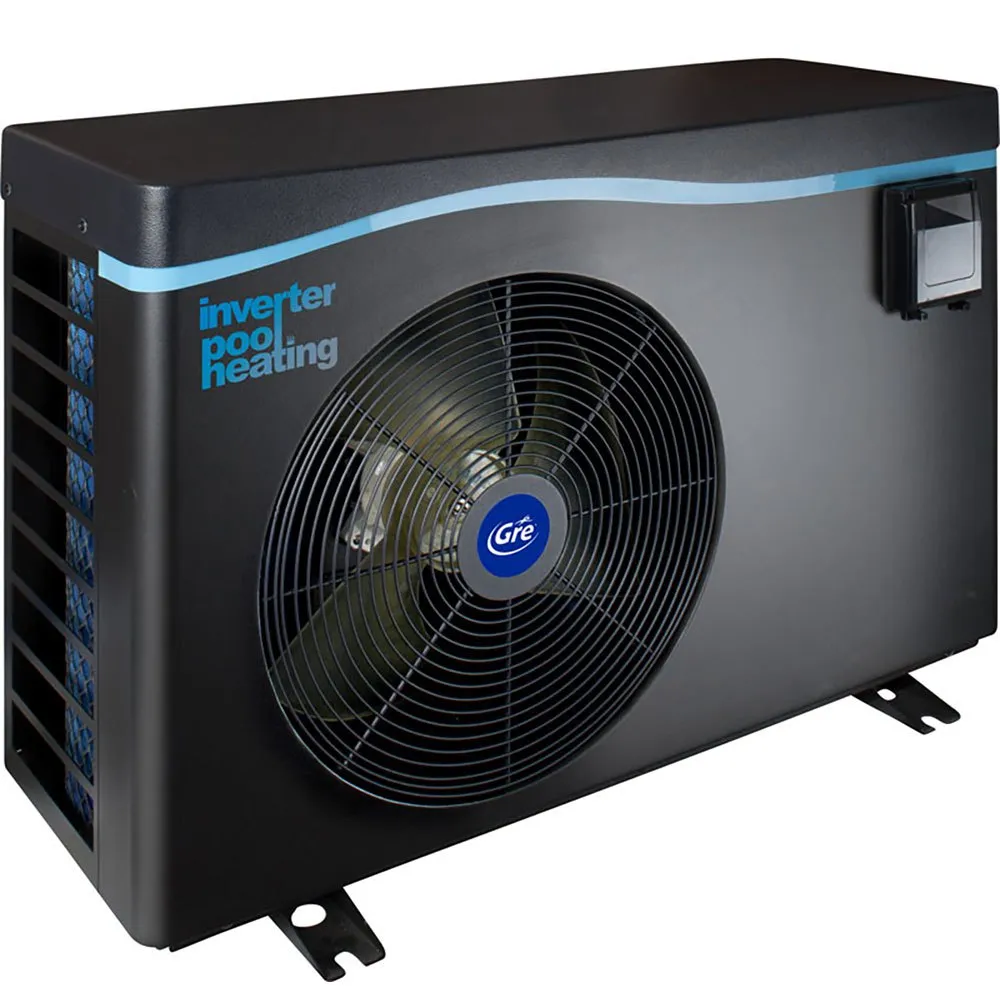

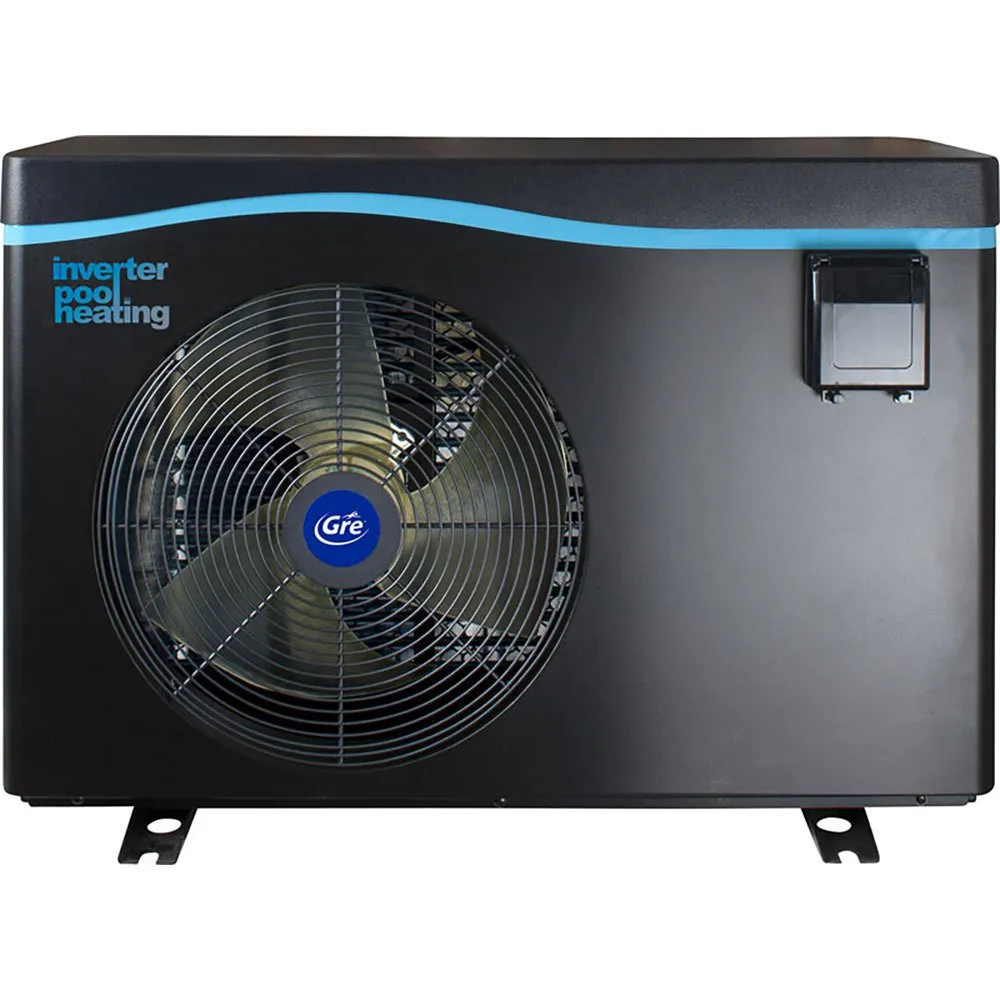

Inverter Pool Heating Up To 60m³ Above And Inground Pools

The heat pump is an efficient and economical heating system that allows heating the pool water. The system uses the outside air and transforms it into energy that is restored in heat. For its proper functioning, this range of heat pumps needs to be connected with a by-pass kit so that the water circulates bypass to the heat pump.

As for all types of heating, heat pumps are installed after the filtration system. The range of GRE heat pumps consists on 4 references, each of which includes a cover for protection during the winter.

Features:

– Heat pump to heat pool water. Suitable for outdoor installation in a ventilated area.
– Inverter – valiable speed· Compatible with swimming pools with a maximum volume of 70 m³.
– Has a calorific power of 12-2.9 Kw.
– Perfect for temperatures between 7°C and 43°C.
– Absorption power of 1.77-0.18 kW.
– Has a Inverter Compressor.
– Power supply 220~240V / 50Hz /1PH.
– Rated current: 79A.
– Minimum fuse: 12A· Advised water flux 3.7 m³/h.
– Water pressure drop: 14 Kpa.
– Heat exchanger: Twist-titanium tube in PVC.
– Noise level 23-35/40-52 dB(A).
– Refrigerant: R32.
– Refrigerant quantity: 550g.
– The pipe connection is 50 mm.
– Includes cover for protection in winter.
– Dimensions: 98,7x 40 x 68,8 cm.

Specifications:

– Max.volume of water (m³):More than 60 m³.
– Heat Power:More than 5 kW.
– Heater Type:Heat Pump.
