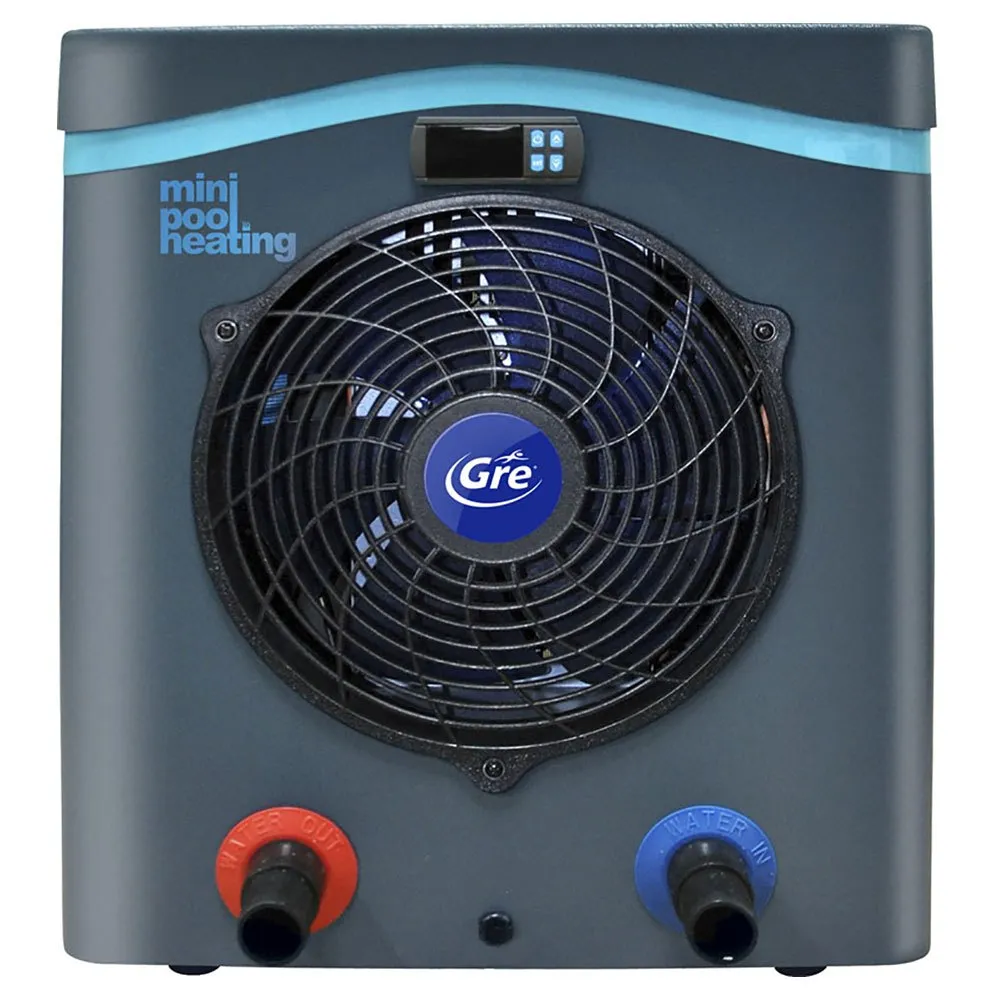

Mini Heat Pump 40 M³

The Mini heat pumps are the new models of heat pumps available in the pool market. These heat pumps are installed very easily and do not require previous installation and specify a By-pass. It is a Plug & Play product that is placed on the same circuit as the pool filtration. They are economic and very effective pumps.

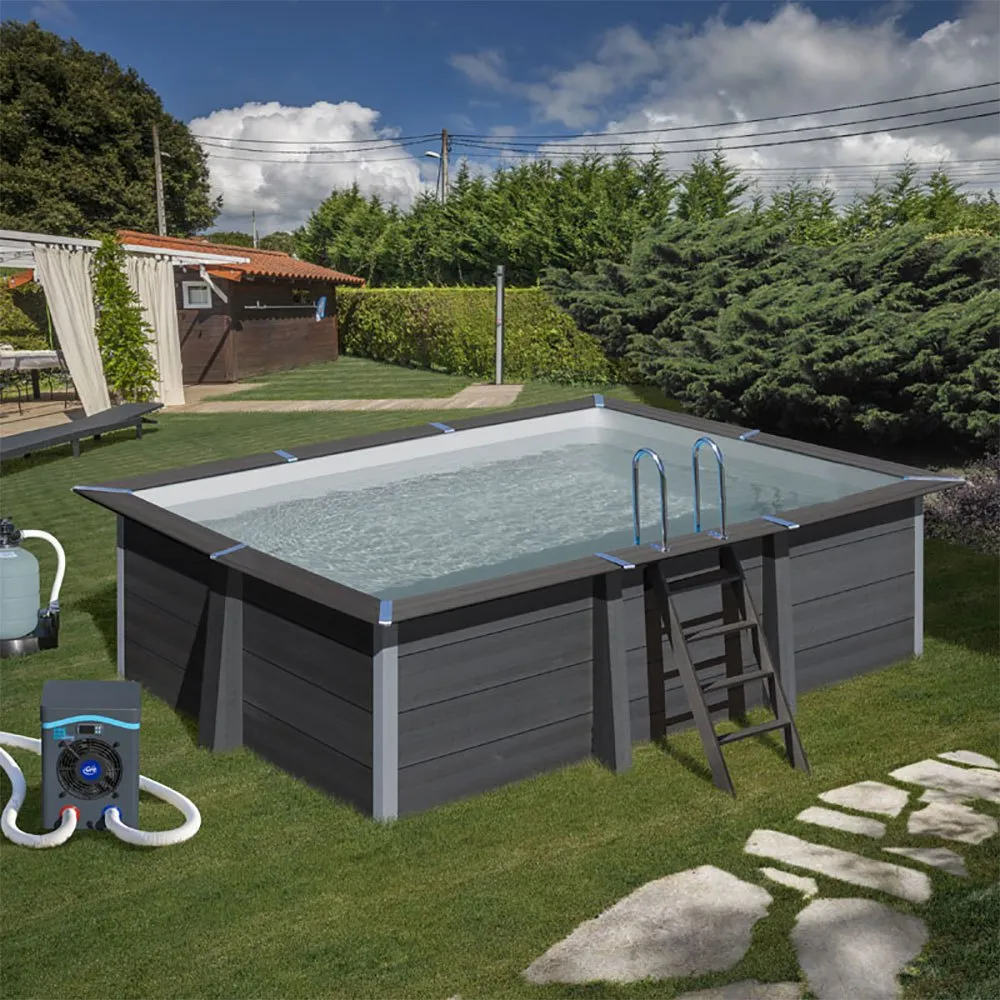

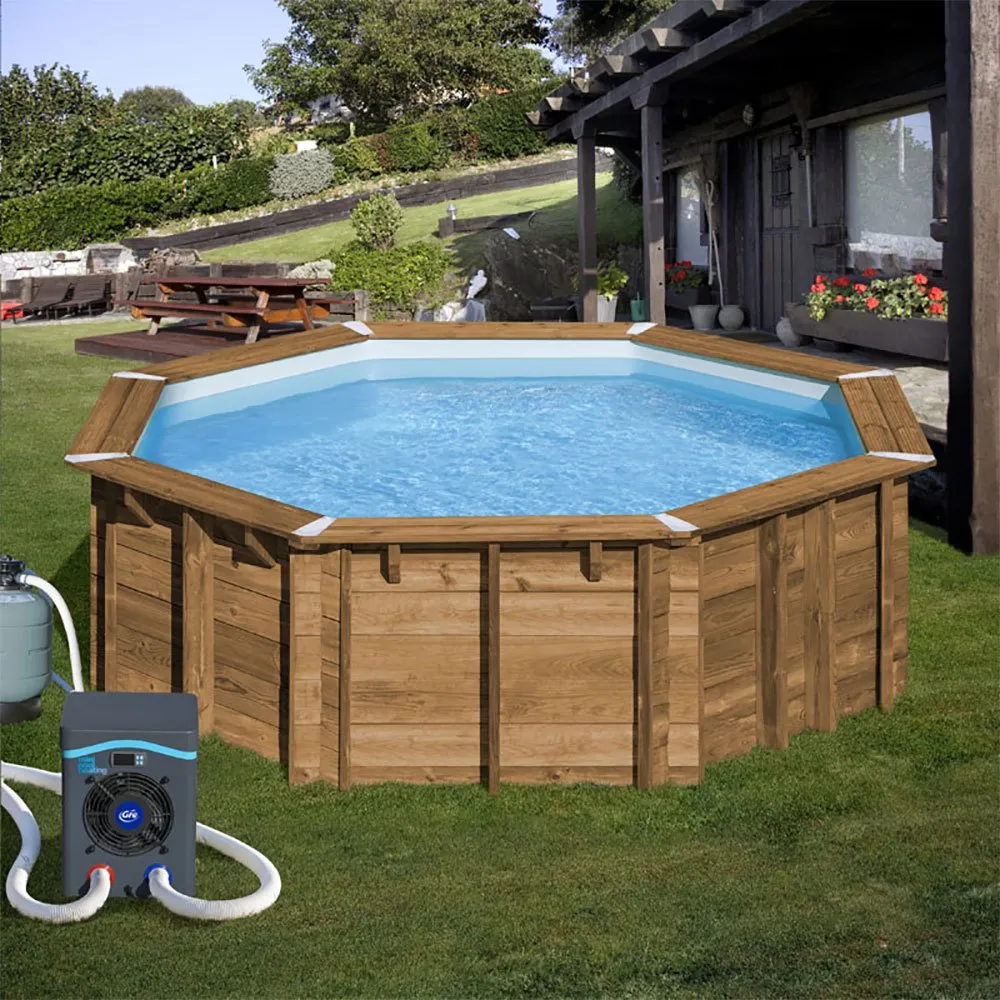

The range of GRE mini heat pumps is composed of two models for pools up to 20 m³ and 30 m³. It can be installed in any type of pool: wood, steel, composite, inflatable or tubular and they also adapt to small and medium pools.

Technical data:

– Type of pool Tubular above ground pool.
– Type of pump Mini heat pumps.
– Max. volume of water From 0 to 30 m³.
– Min. output flow De 0 a 3 m³/h.

Features:

– Mini heat pump for above-ground pools
– Designed to heat pool water with volumes of to 20 m³
– Effective and economic solution to lengthen our bathing season in our pool
– Designed for outdoor installation in a ventilated area
– Easy to install, no bypass required

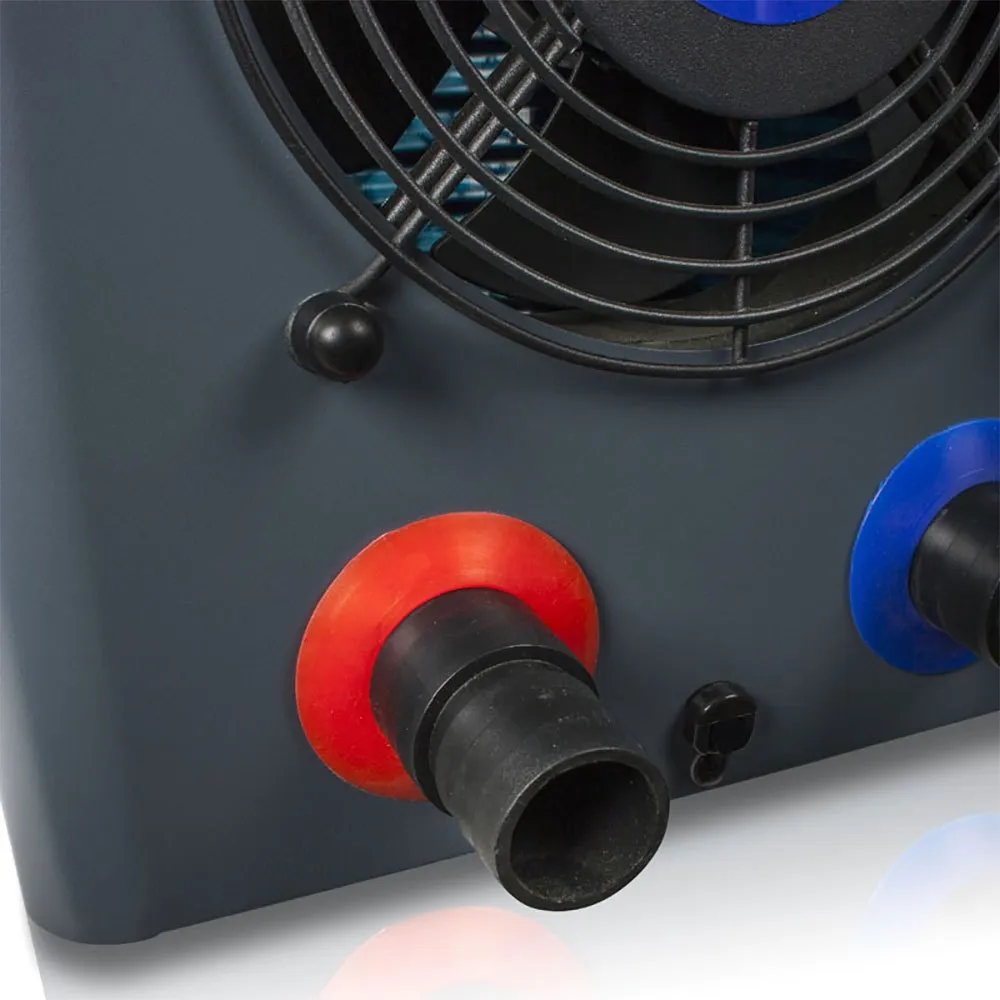

– Connected by hoses with a diameter of 32 and 38 mm
– Minimum and maximum working temperature: +12°C and +42°C
– Has a calorific power of 2,5 kW
– Consumption: 0,59 kW
– Voltage: 220-240V~50Hz
– Recommended minimum water flow rate 2 m³/h
– The condenser is made of titanium in PVC

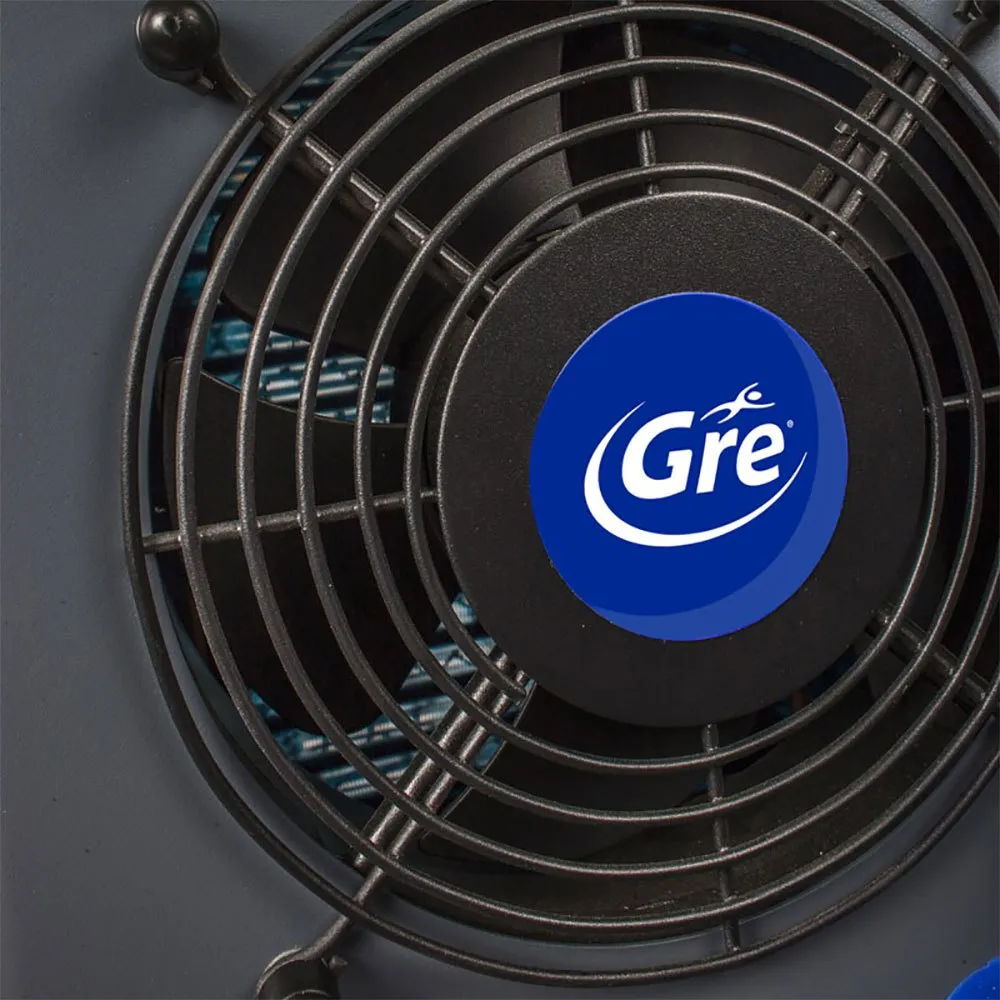

– Ventilator speed is 2,500 rpm
– Noise level: 48 dB(A)
– Dimensions: 31 x 36,3 x 37,5 cm.
