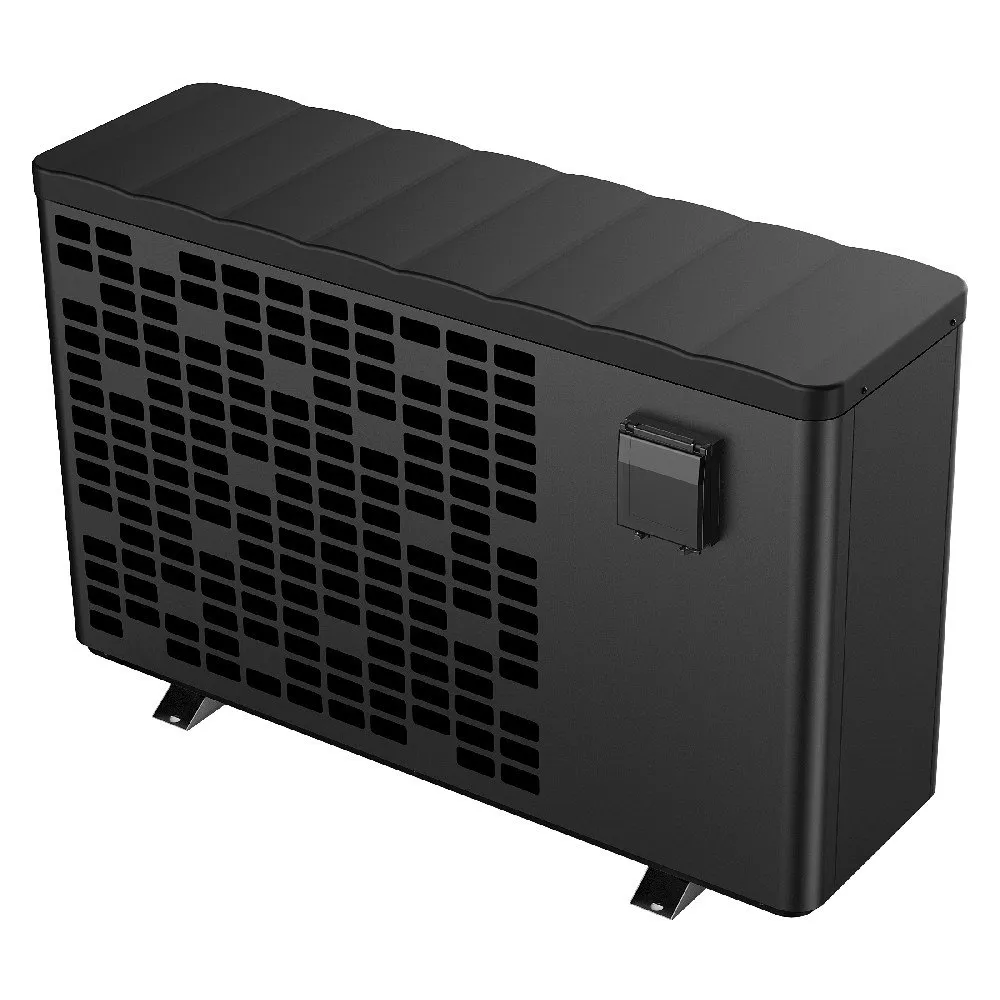

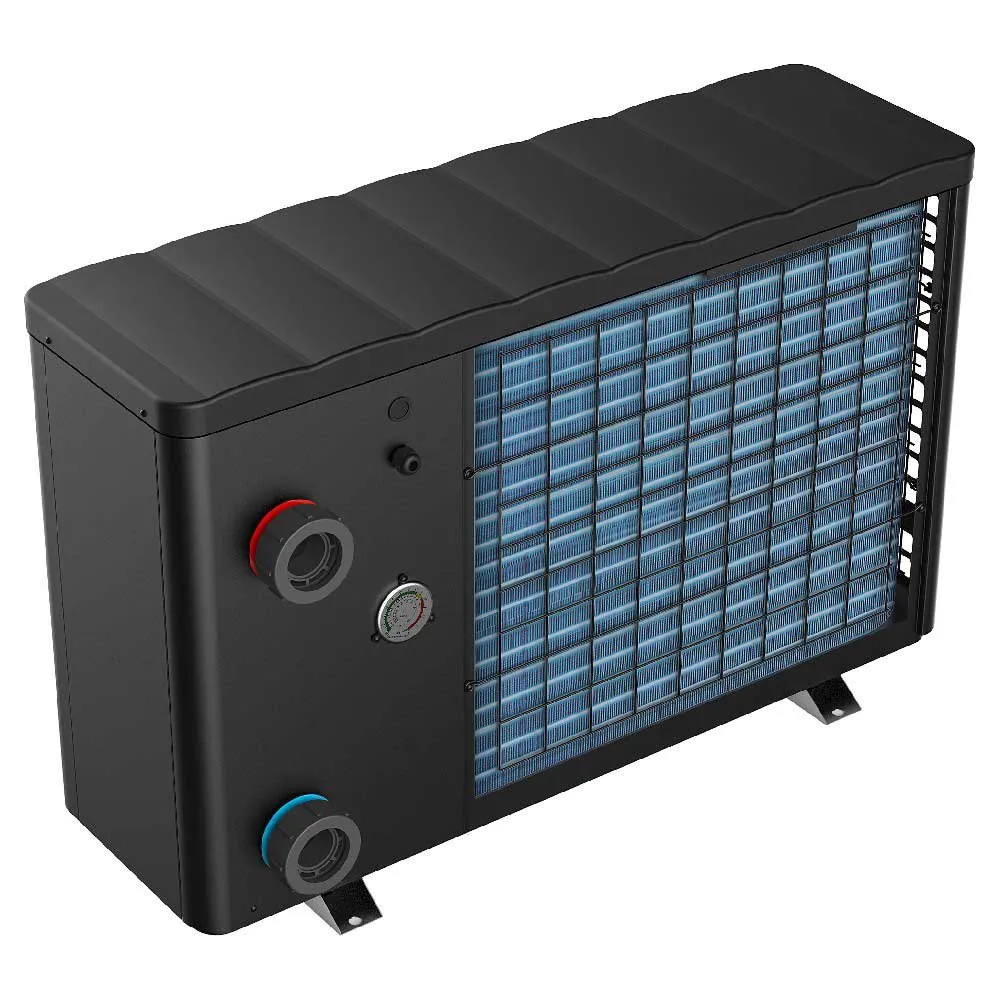

VSN-21 4.7kW Inverter Heat Pump

Features:

– Automatic variable speed (Inverter) adjusting to needs of power
– -5°C minimum air operating temperature with cooling function
– From small to large residential pools
– Galvanized steel body with ABS top
– Laser cut fan outlet
– LCD (LED) display
– Heating function ensured outside of filtration hours
– Automatic defrosting
– Titanium water exchanger, compatible with salt water treatment
– Inverter compressor
– Included 3.5m power cable (without plug) except VSN-17 & VSN-21

Accessories Included In The Pack:
– Winter cover
– Condensate drain kit
– PVC and gaskets, to be glued, 1/2 unions Ø 50
– Remote control kit
– U-shape anti-vibration feet

Specifications:

– Dimensions (mm): 1074*463*889
– Weight (kg): 98

Performance: Air 28°c / Water 28°c / Humid. 80%:
– Operating power (kW): 21-4.7
– Consumed power (kW): 3.4-0.59
– COP: 8.5-6.2

Performance: Air 15°c / Water 26°c / Humid. 70%
– Operating power (kW): 15-3.9
– Consumed power (kW): 3.5-0.67
– COP: 5.8-4.2

Technical Specifications:

– Recommended water flow (m3 /h): 5
– Hydraulic connection: PVC and gaskets, to be glued, 1/2 unions Ø 50
– Electric power supply: 220-240V / 1 N~ / 50Hz
– Nominal operating power (A): 15
– Recommended cable power section (mm²): 3 x 2.5
– Refrigerant fluid: R32
– Refrigerant fluid quantity (kg): 1,5
– Acoustic Power (dB(A)) @ max – min speed): 64 – 73
– Acoustic pressure at 10m (dB(A)) @ max – min speed): 32 – 41
– Recommended section for a maximum length of 20 meters.
– According to EN60704-1:2010+A11:2012 standard
