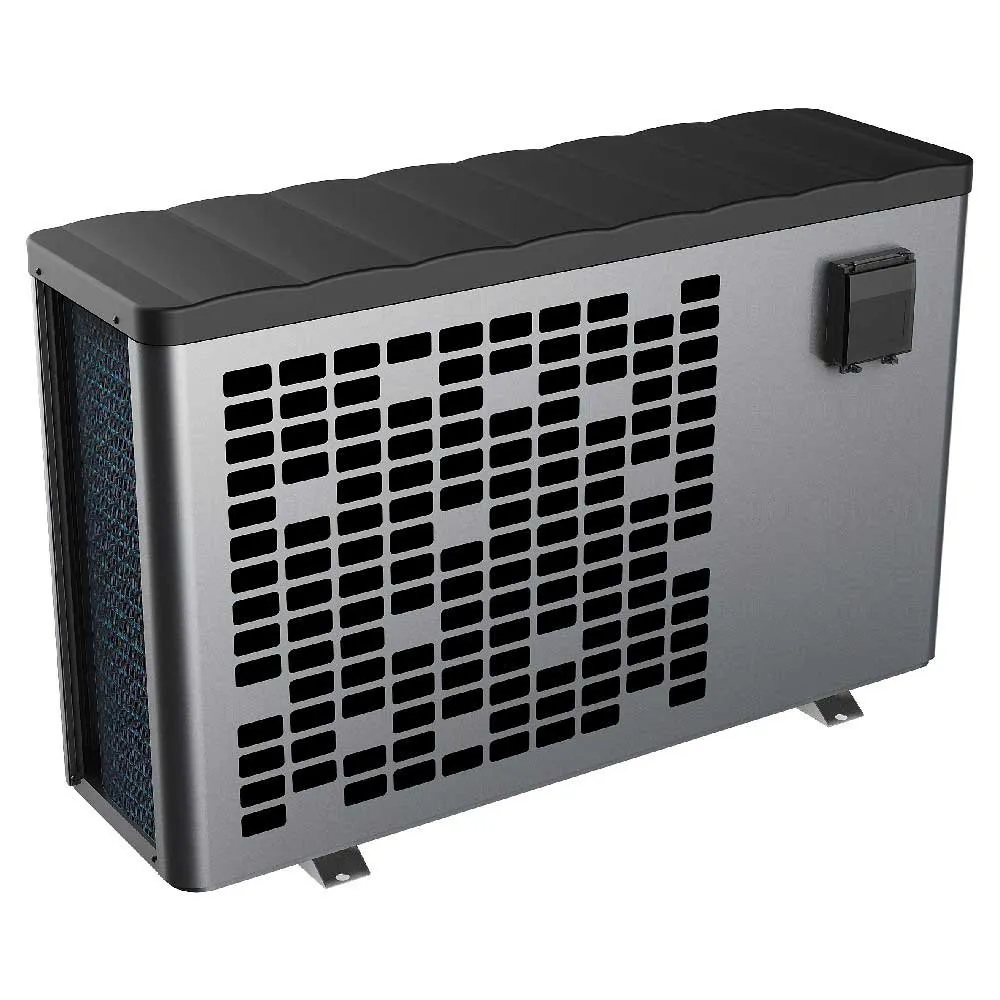

VSP-17 3.8kW Inverter Heat Pump

Features:

– Automatic variable speed (Inverter) adjusting to needs of power
– +7°C minimum air operating temperature
– From small to large residential pools
– Galvanized steel body with ABS top
– Laser cut fan outlet
– LCD (LED) display
– Heating function ensured outside of filtration hours
– Automatic defrosting
– Titanium water exchanger, compatible with salt water treatment
– Inverter compressor
– Included 3.5m power cable (without plug) except VSP-17

Accessories Included In The Pack:
– Winter cover
– Condensate drain kit
– PVC and gaskets, to be glued, 1/2 unions Ø 50
– Remote control kit
– U-shape anti-vibration feet

Specifications:

– Weight (kg): 78

Performance: Air 28°c / Water 28°c / Humid. 80%:
– Operating power (kW): 17-3.8
– Consumed power (kW): 2.7-0.23
– COP: 16-6.4

Performance: Air 15°c / Water 26°c / Humid. 70%
– Operating power (kW): 12-3
– Consumed power (kW): 2.4-0.42
– COP: 7.2-4.9

Technical Specifications:

– Recommended water flow (m3 /h): 4,6
– Hydraulic connection: PVC and gaskets, to be glued, 1/2 unions Ø 50
– Electric power supply: 220-240V / 1 N~ / 50Hz
– Nominal operating power (A): 11,8
– Recommended cable power section (mm²): 3 x 2.5
– Refrigerant fluid: R32
– Refrigerant fluid quantity (kg): 1,1
– Acoustic Power (dB(A)) @ max – min speed): 55 – 68
– Acoustic pressure at 10m (dB(A)) @ max – min speed): 24 – 37
– Recommended section for a maximum length of 20 meters.
– According to EN60704-1:2010+A11:2012 standard
